Kennions Lara Beam Engine

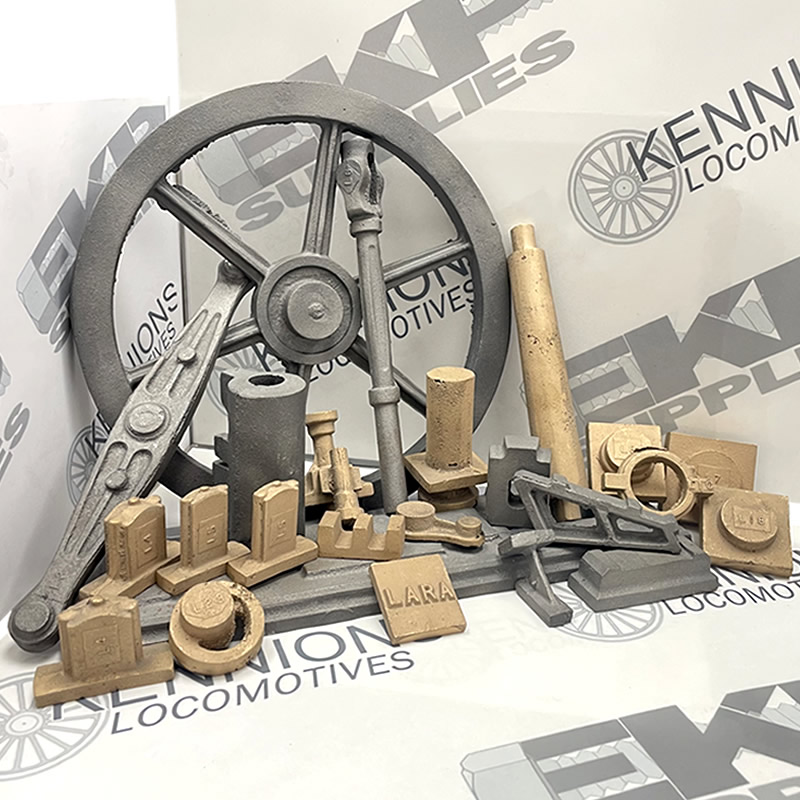

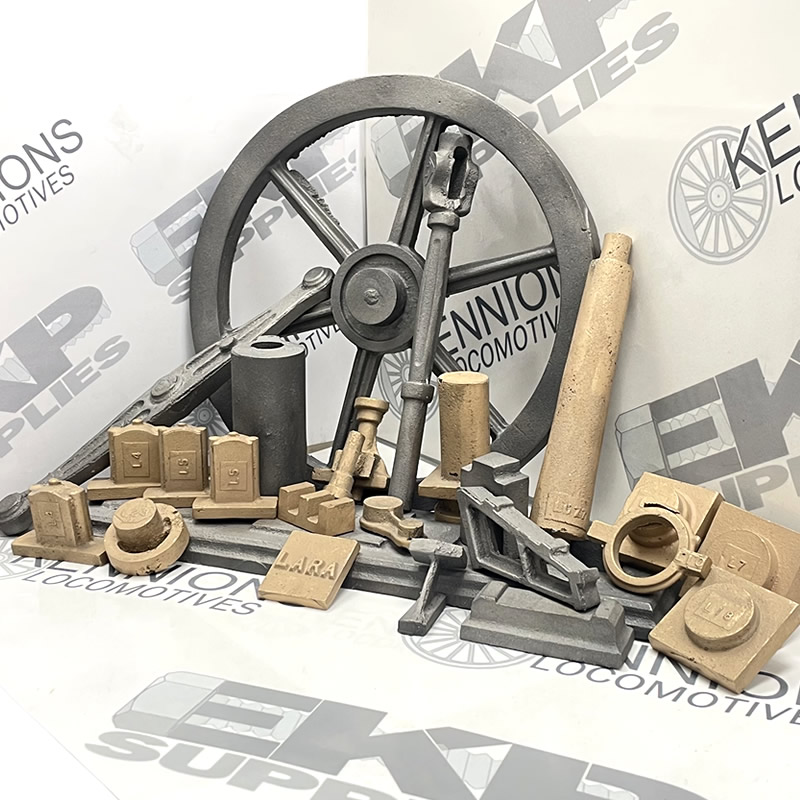

This kit includes the full Drawings and unmachined Casting. The castings included are:
- 1 x Base Plate - Cast Iron
- 1 x Beam Arm - Cast Iron
- 1 x Cylinder Block - Cast Iron
- 2 x Main Shaft Bearing Support - Gun Metal
- 2 x Lever Shaft Bearing Support - Gun Metal
- 1 x Main Lever - Cast Iron
- 1 x Cylinder Cover - Gun Metal
- 1 x Column Top - Gun Metal
- 1 x Air Pump Housing - Gun Metal
- 1 x Eccentric Strap - Gun Metal
- 1 x Flywheel - Cast Iron
- 1 x Cam Disc - Gun Metal
- 1 x Steam Chest Cover (Name Plate) - Gun Metal
- 1 x Pump Housing (Large) - Gun Metal
- 1 x Pump Housing (Small) - Gun Metal
- 1 x Column Support Block - Gun Metal
- 1 x Central Column - Gun Metal
- 1 x Column Base - Gun Metal
- 1 x Main Bearing Support Pad - Cast Iron
- 1 x Column Angle Support - Cast Iron
- 1 x Angle Link Bracket - Cast Iron
- 1 x Steam Chest - Cast Iron
- 1 x Inner Eccentric - Gun Metal
Specification
- 410mm Length
- 180mm Depth
- 340mm Height
- 230mm Flywheel Diameter
- 220mm Main Beam Arm Length
